- Up to 1+2 crew and 8 troops
- Inner net volume: 11 m3
- Fully stabilised two-men turret or RCWS with 25 or 30 mm gun
- Optional ATWS (SPIKE, TOW)
- Smoke grenade launchers
- Laser warning system
- More than 10 tonne payload
- Native equipped with BMS
- Network integrated
FULFILLING MODERN OPERATIONAL NEEDS

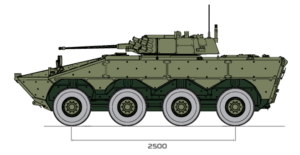

The VBM Freccia is an 8×8 wheeled armoured vehicle designed for maximum crew survivability, offering an inner volume of about 11 m³ to accommodate a driver, two in the turret, and 8 fully equipped dismounts. Its hydraulically operated rear ramp ensures easy troop dismount, even with heavy gear. The vehicle is tailored for both war and peacekeeping missions, providing infantry with necessary firepower and protection.
ARMOURED EXCELLENCE
Equipped with a two-man HITFIST™ Plus turret, the Freccia mounts a 25 mm or 30 mm cannon and advanced fire control and sighting systems. The innovative proprietary H-type driveline reduces its silhouette, giving it a stealthier profile. Powered by an engine with automatic gearbox and 3-axle steering, the Freccia offers exceptional mobility, while its hydropneumatic suspension ensures smooth off-road driving. It also integrates a full C4I system for net-centric operations.
VBM FRECCIA AIFV/ATGM
Dimensions
| Length | 8560 mm |
|---|---|
| Hull height | 2040 mm |
| Total height | 3180 mm |
| Overall width | 2990 mm |
| Wheelbase | 2500 mm |
| Approach angle | 40° |
| Departure angle | 40° |
| Crew | 1 + 2 + 8 |
Weight / Volume / Payload
| Empty weight | 22,000 kg |
|---|---|
| Payload | 8000 kg |
| Max. GVW | 31,500 kg |
| Internal volume | 11 m3 |
Performance
| Max. speed (paved road) | 110 km/h |
|---|---|
| Gradient | 60% |
| Side slope | 30% |
| Range on road (70 km/h) | > 800 km |
| Trench | ≥ 2 m |
| Fording depth (without preparation) | 1.5 m |
| Turning radius (curb to curb) | 9.0 m |
MOBILITY
| Engine | IVECO 8262 |
|---|---|
| Fuel | Diesel fuel/JP8 |
| Power | 405 kW (550 hp) |
| Torque | 2000 Nm (202 kgm) |
| Transmission system | Automatic, 5 forward gears and 2 reverse |
DRIVELINE / SUSPENSION
| Driveline architecture | H-type driveline, single differential |
|---|---|
| Suspension system | Hydro-pneumatic with independent wheel stations |
| Steering axles | 1st, 2nd and 4th axle (on demand) |
| Wheels | 14.00R20 wheels with Run-flat system and Central Tyre Inflation System (CTIS) |
SURVIVABILITY
| Low vehicle profile | |
|---|---|
| High hardness armoured steel hull | |
| Direct fire ballistic armour | Base level |
| AT mines protection | Base level |
| Anti-mine seats | |
| Laser warning system |
OPTIONS
| Hydraulic winch | |
|---|---|
| CBRN protection | Collective with individual back-up |
| AFESS (Automatic Fire and Explosion Suppression System) | |
| Anti-explosion tanks | |
| Direct fire ballistic armour | Advanced level |
| AT mines protection | Advanced level |
| Integrated Anti-RCIED system |
SIGHT SYSTEMS
| Commander sight | 3 episcopes in front of the hatch |
|---|---|
Night vision goggles |
TURRET— CREW
| 2 | Commander and gunner |
|---|
