MTV

MULTIROLE TACTICAL VEHICLE

Multirole Vehicles

The MTV is designed to combine high tactical 4×4 mobility, optimal off-road performance, outstanding modularity, advanced system integration capabilities and high crew protection coupled with excellent payload capability. The platform’s extraordinary level of modularity, versatility and performance makes it a valuable asset for a variety of mission scenarios.


In 2019, IDV signed a contract with the Dutch Armed Forces to supply around 1,200 units of this modular family of 4×4 medium multirole vehicles.

ONE SINGLE PLATFORM
AN INFINITE AMOUNT OF APPLICATIONS

PLAY VIDEO


    • Short /Long /Monocoque cabs
    • High ergonomics

    • Add-on protection kit for Hard Top, Soft Top and Pick-up, and protected monocoque hull
    • Ballistic protection
    • Anti-mine and anti-IED protection
    • According to STANAG 4569
    • Payload of protected vehicle > 2 t

    • EURO III engine (280 hp, 1000 Nm)
    • Automated transmission
    • Transfer case with 2 ratios (high / low)

    • 24 V electric system
    • EMC (AECTP500, MIL-STD-461F)
    • Black-out lighting system (STANAG 4381)
    • Slave start socket and self-emergency start

    • Remote-Controlled Weapon Station (RCWS)
    • Ring mount
    • Protected ring mount
    • SGL
    • Soft mounts
    • Assault ladder
    • CBRN
    • C4I, radio, jammer
    • MoD Government Furnished Equipment

    • Straight chassis
    • Front and rear rigid axles with leaf-springs
    • Tyres 365/85 R20 with run-flat
    • CTIS
    • ABS
    • Three differential locks

    • Uncompromised ergonomics in its class
    • Add-ons and attachments available for
      customisation

    • A brand-new family of vehicles based
      on the same platform: Hard-top, Softtop,
      Pick-up, Military Police, Medevac,
      Command Post, Troop Transport

    • Depending on the version, can
      accommodate a crew of up to 1 + 7

    • CBRN overpressure system
    • Deep fording 1500 mm (STANAG 2805)
    • I.R. lighting
    • Electrical winch

    • Front / rear emergency / towing eyes (STANAG 4478, 4101)
    • No-preparation fording up to 750 mm (STANAG 2805)
    • Auxiliary heater

FIT FOR EVERY MISSION

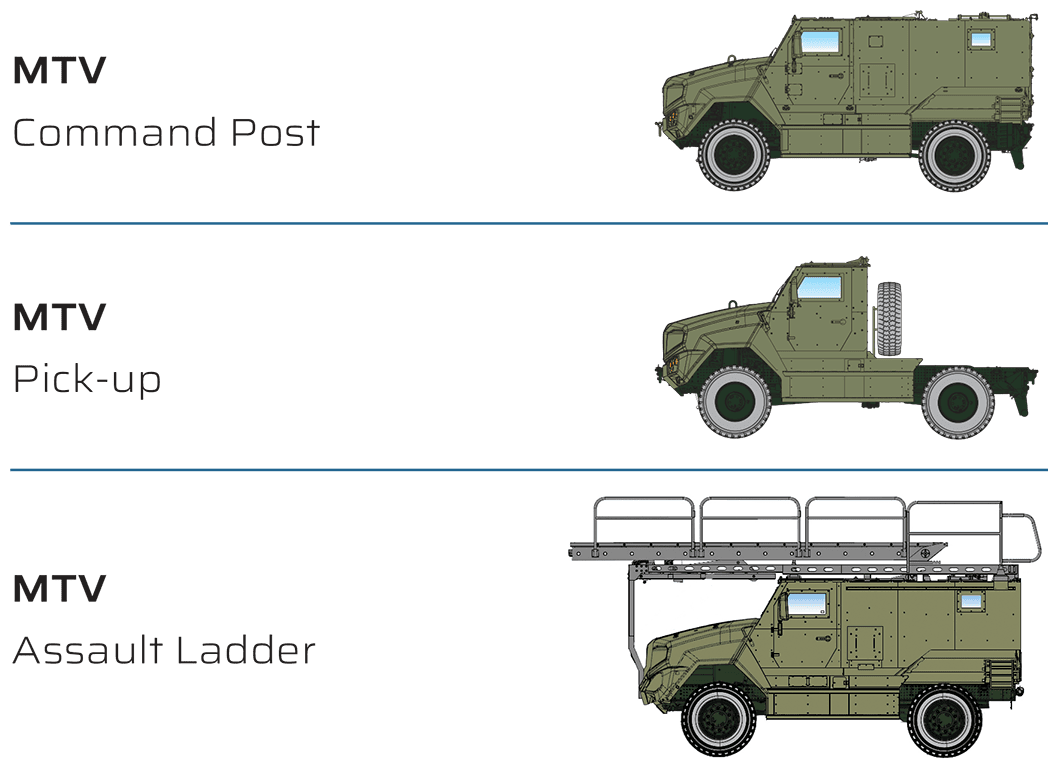

The MTV with its configurations like Hard Top, Soft Top, Pick-up, Military Police, Casualty Transport, Personnel Transport, and Command Post can respond to the needs of all Armed Forces.
The MTV features a 6-cylinder, 6.7 litres diesel engine with 280 hp, automated transmission, and permanent 4×4 drive with 3 lockable differentials. The Soft Top, Hard Top, and Pick-up versions can be either protected or unprotected. The latter can subsequently be upgraded with add-on kits for ballistic and blast protection.

CONSTANT RELIABILITY AND UNCOMPROMISING PERFORMANCE

High reliability, easy maintenance and low full life-cycle costs were core requirements in the design brief for the MTV, guiding the choice of the major assemblies towards components with proven performance and reliability over millions of kilometres in the most diversified and demanding environmental conditions.

THE 12KN VEHICLE CHOSEN BY THE DUTCH ARMED FORCES

In 2019, IDV signed a contract with the Dutch COMMIT (Command of the Materiel and IT) to supply 1,185 medium multirole protected vehicles under the “12kN & RCWS” project. The 12kN contract consists of a family of 4×4 vehicles based on IDV’s MTV platform and available in different configurations.

MTV

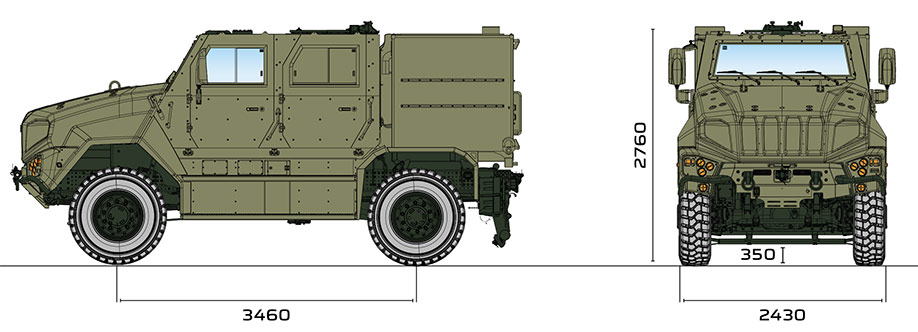

Technical Features
Crew

up to 1+7

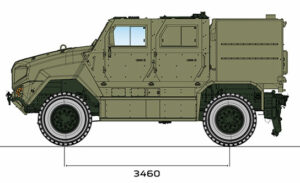

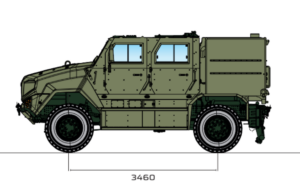

Wheelbase

3460 mm
Track

2015 mm
Overall length

5900 mm
Overall width

2430 mm
Overall height

2760 mm
Step obstacle

350 mm
Approach / Departure angle

45° / 35°
Fording depth (without preparation)

750 mm
Max. Gradient/Side slope (at GVW)

60% / 30%
Turning circle radius (wall to wall)

<16 m
Payload

>2000 kg
Gross Vehicle Weight

> 12500 kg
Towing capability

3500 kg
Top speed

90 km/h
Max. range

>600 km
Max. power

280 hp (207 kW)
Max. torque

1000 Nm
Brakes

Disc and caliper brakes with ABS
Tyres

365/85 R20
NATO interoperability requirements

STANAG 2021, 4062, 4074, 4101, 4381, 4478
