DEFENCE IMPROVES ITS POWER

LMV2 - Light Multirole Vehicle 4x4

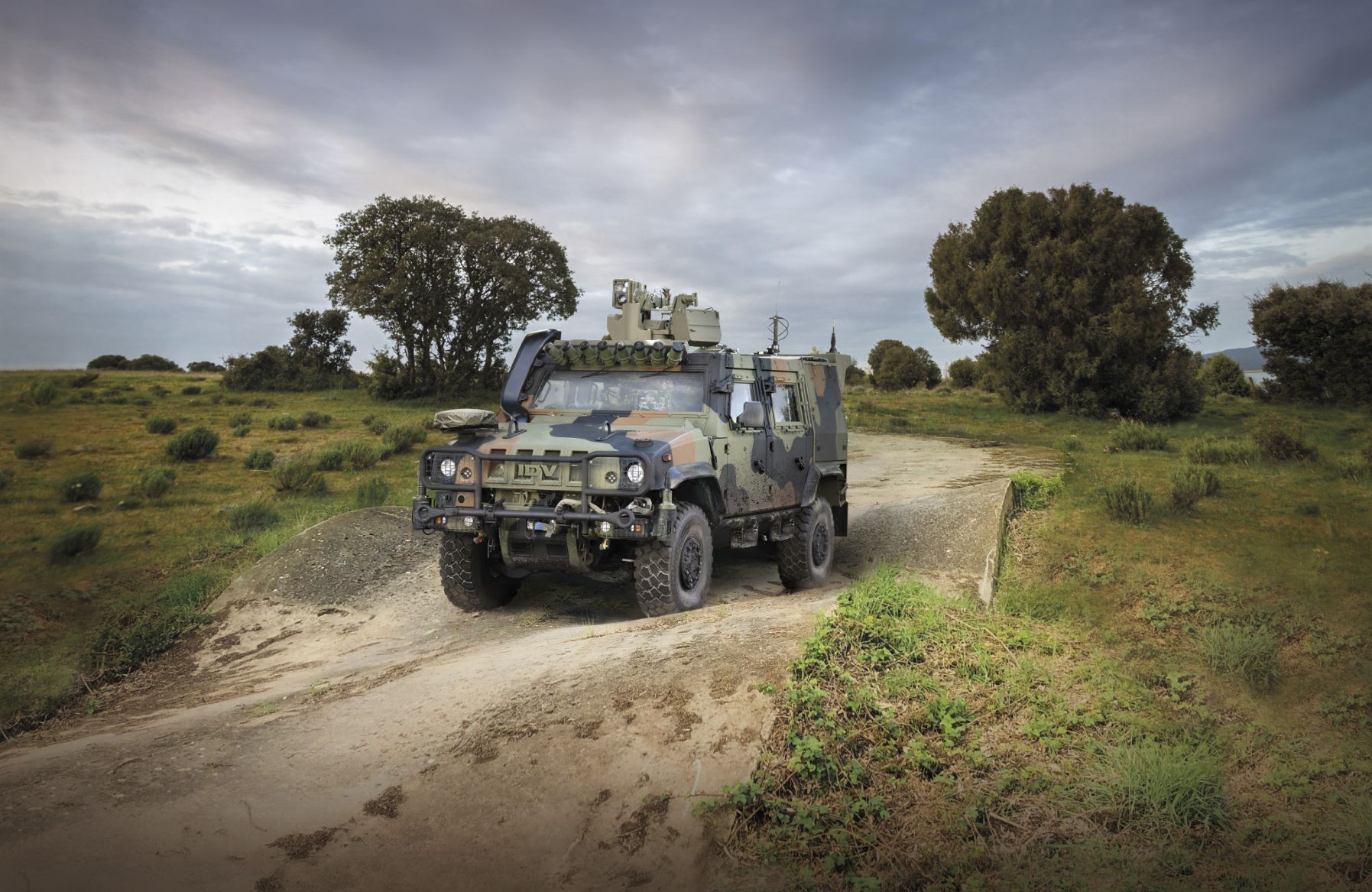

The LMV, first produced in 2006, has been the subject of continuous development and innovation. The latest evolution of the LMV, the LMV2, offers better performance with increased payload, improved reliability and enhanced crew comfort. The new version has a G.V.W. of 8.1t and is powered by the FPT F1C engine coupled to a brand new ZF automatic 8-speed transmission. The upgraded driveline has three differential locks, can handle more power and has optional ADM (Automatic Drivetrain Management) and ESP (Electronic Stability Program), enhancing off-road handling and driving safety. Further mobility enhancements have been achieved thanks to a specially designed new suspension unit set, combined with new tyres, enhancing the vehicle’s all-terrain capacity. Crew protection has been given special priority, reflecting the importance of achieving mission success with minimum risk to personnel. The crew cell is decoupled from all other components, minimising the transmission of blast energy from the chassis through a range of technical solutions that include an underbelly blast shield, multi-layered floor structure, suspended and shock-dampened seats, supporting structures and the use of composite materials. The “dual-role” hard-top, constructed on a ballistic steel monocoque framework with lightweight aluminium/steel roll-bar, allows the vehicle to be equipped with either a manual turret or Remote Weapon Station (RWS), both of which can be quickly and easily fitted and removed in the field, ensuring greater deployment flexibility. The LMV2 is designed to accommodate extensive mission systems such as BMS, intercom, ECM (Electronic Counter Measures) and radio thanks also to its outstanding Electromagnetic Compatibility (EMC) profile that meets the exceptionally demanding DEF-STAN and MIL-STD requirements. Sub-system integration has also been greatly eased by adopting a new digitised electronic architecture and improved power supply. The shape and dimensions of the LMV2 give the vehicle a reduced cross-spectrum signature (thermal, acoustic, visual and radar) and significant transportability and strategic mobility by land, air (two LMV2 fitting onto a C130J) and helicopter. Last but not least, the maintenance demand has been reduced by improving the type and location of certain subsystems and by tailoring the service regime. An optional, digitised dashboard provides on-demand maintenance based data on prognostics, allowing users to accurately review and schedule maintenance tasks rather than predicting and scheduling preventive maintenance. At present, the LMV is available with different protection levels and cabins (short and long type) to meet a wide range of different mission roles. Its modular design allows for diverse mission variants, from Patrolling to Command & Control, Reconnaissance, Medevac, Logistic Carrier, Artillery, CBRN, Electronic Warfare, Special Operation Forces, etc…

8.1t G.V.W

145 - 162kW Power

500NmTorque

LMV Light Multirole Vehicle
LMV Light Multirole Vehicle

LMV1 4X4 FAMILY

LIGHT MULTIROLE VEHICLE EVOLUTION

LMV2 4X4

PROTECTION

Improved ballistic steel cab
Composite armour
Crashworthiness crew-cell

PERFORMANCE

New cooling and air filtration system
Millions km of experience improving reliability
Higher G.V.W. 8.1t
Increased payload > 85%

MOBILITY

New chassis, new suspensions,
New driveline, new tyres
Automatic Drivetrain Management,
Electronic Stability Control



POWER

Powerful engine (220hp)
High-performance 8-speed automatic gearbox



DESIGN

Uncompromised ergonomics in its class
Widened cockpit, improved visibility



ARMAMENT

Up to 12.7mm RCWS or 40mm automatic
grenade launcher

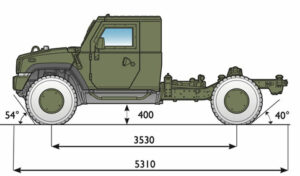

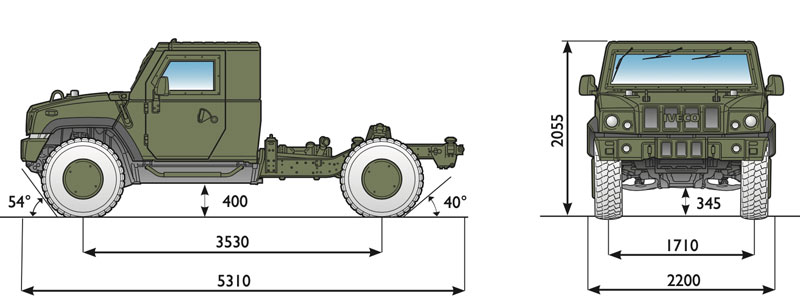

LMV2 Chassis CAB

LONG WHEELBASE

Technical Features - 7100 kgs
Wheelbase

3530 mm

Track

1710 mm

Max width

2200 mm

Max width (with reduction capability to)

2050 mm

Overall lenght

5310 mm

Height (cabin top line)

2055 mm

Min. height (under differentials)

345 mm

Min. height (undercarriage)

400 mm

Front/rear incidence angles

54°/40°

Total mass on the ground

7100 Kgs

Basic towing load

2000 Kgs

Max towing load

3500 Kgs

Payload

2400 Kgs

Max speed on road, high range

110 Kh/h

Max speed on road, low range

65 Kh/h

Max longitudinal slope gradient

60 %

Max transverse slope gradient, dynamic

30 %

Max transverse slope gradient, static

40 %

Turning circle (kerb to kerb)

<18 m

Fording depth (without preparation)

850 mm

Fording depth (with preparation and specific maintenance)

up to 1500 mm

Power/weight ratio

20,5 kW/t

Technical Features - 7750 kgs
Wheelbase

3530 mm

Track

1710 mm

Max width

2200 mm

Max width (with reduction capability to)

2050 mm

Overall lenght

5310 mm

Height (cabin top line)

2055 mm

Min. height (under differentials)

345 mm

Min. height (undercarriage)

400 mm

Front/rear incidence angles

54°/40°

Total mass on the ground

7750 kgs

Basic towing load

2000 kgs

Max towing load

3500 kgs

Payload

3000 kgs

Max speed on road, high range

110 km/h

Max speed on road, low range

65 km/h

Max longitudinal slope gradient

60 %

Max transverse slope gradient, dynamic

30 %

Max transverse slope gradient, static

40 %

Turning circle (kerb to kerb)

<18 m

Fording depth (without preparation)

850 mm

Fording depth (with preparation and specific maintenance)

up to 1500 mm

Power/weight ratio

18,7 kW/t

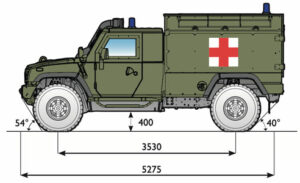

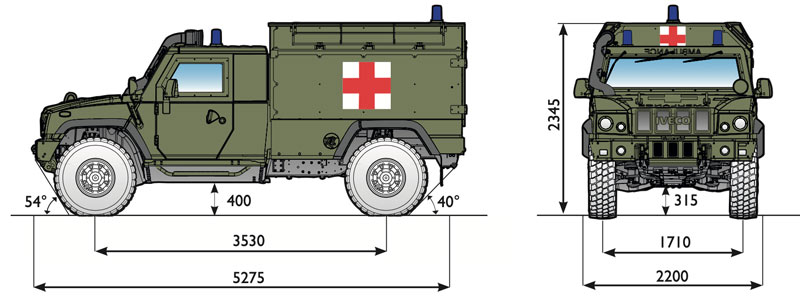

LMV2 MEDEVAC

LONG WHEELBASE

Technical Features - 7100 kgs
Wheelbase

3530 mm

Track

1710 mm

Max width

2200 mm

Max width (with reduction capability to)

2050 mm

Overall lenght

5275 mm

Height (cabin top line)

2055 mm

Height (rear shelter)

2345 mm

Min. height (under differentials)

315 mm

Min. height (undercarriage)

400 mm

Front/rear incidence angles

54°/40°

Total mass on the ground

7100 kgs

Basic towing load

2000 kgs

Max towing load

4200 kgs

Max speed (st)

90 km/h

Max speed (battle conditions)

110 km/h

Max longitudinal slope gradient

60 %

Max transverse slope gradient

30 %

Turning circle (kerb to kerb)

≤18 m

Fording depth (without preparation)

750 mm

Power/weight ratio

≈20 kW/t

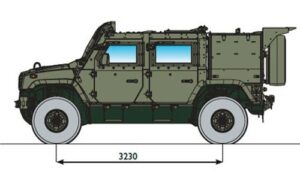

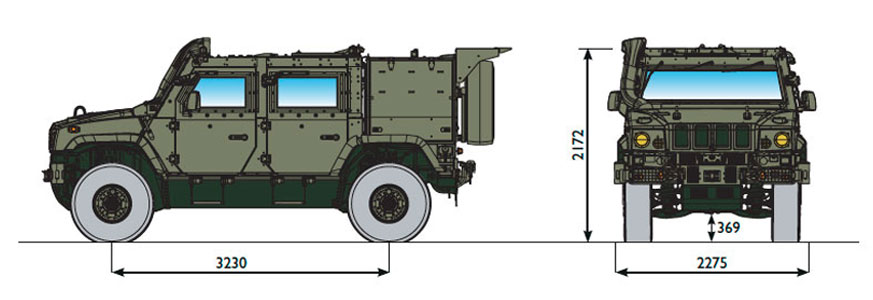

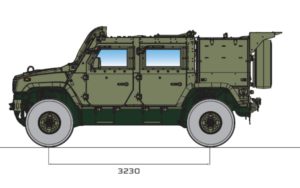

LMV2 Crew Cab

Short Wheelbase

Technical Features - Dimensions
Wheelbase

3230 mm

Track

1720 mm

Max width

2275 mm

Max width (with reduction capability to)

2050 mm

Overall length

4845 mm

Height (cabin)

2172 mm

Ground clearence

350 mm

Front/Rear incidence angles

48°/43°

Technical Features - Performance
Max speed on road, high range

110 km/h

Max speed on road, low range

65 km/h

Max longitudinal slope

60%

Max transverse slope

30%

Turning circle (kerb to kerb)

14,3 m

Fording dpth (without preparation)

750 mm

Fording depth (with preparation)

1500 mm

Power/weight ratio

20 kW/t

Technical Features - Mass and payload
Total mass on the ground

8100 kg

Basic towing load

2000 kg

Max towing load

3500 kg

Minimum payload

1500 kg
