PROTECTED, MOBILE, AMPHIBIOUS

GUARANI 6x6 - Amphibious Armoured Vehicle 6X6

The Guarani is a family of 20t 6×6 armoured, amphibious vehicles, developed jointly by Iveco Defence Vehicles and the Brazilian Army following the contract signed in 2009.

Fitted with an IVECO-FPT 9-litre, 279kW (380hp) bi-fuel common-rail engine, coupled to an automatic gearbox and fully independent McPherson type suspension system, the Guarani APC can carry up to 11 fully equipped personnel.

With dimensions 6.9 meters length, 2.7 meters width and 2.3 meters height, it can be transported by C-130 Hercules and KC-390 aircrafts.

This family of armoured vehicles can be equipped with manned and unmanned turrets carrying 5.56 to 30mm caliper weapons.

The modular approach to product development offers numerous advantages, from developing product variants without unnecessary re-engineering (reducing lead times and costs), to optimal power, protection and payload combinations, operational flexibility and support through improved maintainability and easy upgrade.

With different configurations to fulfil various roles from personnel carrier to command post, recovery, ambulance and reconnaissance, the Guarani family is geared to meet an entire range of operational needs.

Simple and robust, its design facilitates operational support and offers greater deployment and employment flexibility.

More than 500 units have been produced so far for a range of different End Users.

18t G.V.W

279kW Power

1500NmTorque

PROTECTION

Ballistic steel monocoque hull
designed for high protection levels

PERFORMANCE

Designed for rapid and long-range missions

MOBILITY

6×6 amphibious generation in the 20-ton class
with high maneuverability in urban,
amphibious and cross-country conditions

POWER

6-cylinder – 8.7lts, 380 horsepower engine

DESIGN

Hi-tech design and simple logistics
for increased competitiveness

CREW AND TROOP

Up to 3 crew and 8 troops
in 12.5m3 of protected area

ARMAMENT

Up to 30mm calibre

AMPHIBIOUS ARMOURED VEHICLE

GUARANI 6x6

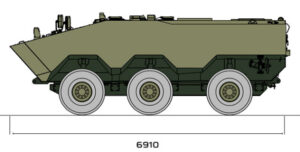

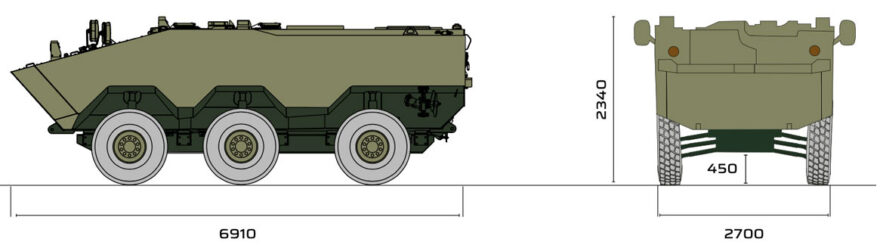

Technical Features
Length

6.91 m

Height (hull)

2.34 m

Overall Width

2.70 m

Ground clearance

0.45 m

Track

2.26 m

Wheelbase

1.70 -2.00 m

Approach angle

40°

Departure angle

40°

Seats

1+1+1+8 (11)

Empty weight

14.5 t

G.V.W amphibious operation

17.7 t

Amphibious

without preparation

Max. speed paved road

> 90 km/h

Max. speed in navigation

7 km/h

Min. speed

4 km/h

Gradient

≥ 60%

Side slope

≥ 30 %

Range on road (70 km/h)

≥ 600 km

Step

0.5 m

Trench

> 1.2 m

Turning circle radius

10.8 m

Power to weight ratio (amphibious version 17.7 t)

15.7 kW/t

Type

FPT Cursor 9

Injection system

Common rail

Fuel

F34, F54

Power

279 kW

Torque

1500 Nm

Gearbox

Automatic type, 6 forward gears plus reverse

Steering and Suspension
  • Transmission lay-out longitudinal type
  • McPherson type indipendent suspension systems
Tubeless Tyres
  • 14.00-R20 (disc type 10.00W)
  • Brakes                                                        Disk type on all wheels
  • ABS                                                                      Standard
  • CTIS                                                                     Standard
  • Run-flat system                                                 Standard
Electric System
  • CAN bus type
  • Digital dashboard
  • Voltage 24 V (opt. 12 V socket available)
Towing Capacity in Emergency

Vehicle of same class

Ballistic Protection
  • High hardness monocoque steel hull
  • Pre-set for being equipped with fittings for additional armour
  • Pre-set for being equipped with fittings for Anti-mine protection
Options
  • NBC protection
  • Fire extinguishing system on engine compartment
  • Fire extinguishing system on crew compartment
  • Anti-explosion system in crew compartment
