Tactical And Logistic Vehicles

DEFENCE IS IN OUR DNA

High Mobility Range

Iveco Defence Vehicles’ High Mobility range of 4×4, 6×6 and 8×8 battle-proven trucks is designed to offer high protection and mobility for demanding specialist military logistic applications. With its exceptional mobility and fording capability of 850mm, Iveco Defence Vehicles’ High Mobility Range offers tactical support to military operations in the most hostile environmental conditions, from -32°C to +49°C. Thanks to its modular design, the High Mobility Product Range can be readily customized to meet specific user requirements in terms of both cab and driveline.

up to 412 kW up to 50 tpower / gvw
heavy trucks

up to 507 kW up to 125 tpower /gcvw
tractors

HIGH MOBILITY RANGE PROTECTION

The entire range of Iveco Defence Vehicles’ High Mobility Trucks is designed to mount protected cabs with add-on armour kits offering both anti-mine and ballistic protection.
The add-on armour kits can rapidly fitted and removed, making field repairs quick and easy, by simply changing the damaged module.

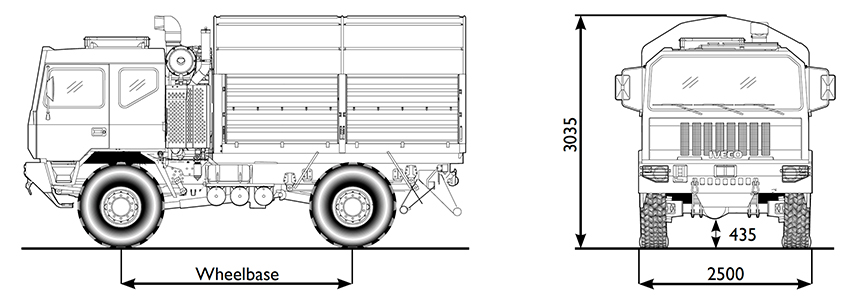

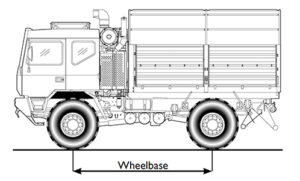

M170.31/33 WM

HIGH MOBILITY 4x4 WITH STANDARD CAB

Technical Sheet

Technical Features
Wheelbase	3500 – 4200 – 4800 mm
Kerb weight	ca. 10 tonnes
GVW	17 tonnes
GCW	ca. 37 tonnes
Top speed	> 90 km/h
Engine output (DIN)	228 (310) E3 – 242 (330) E5 kW (HP)
Gearbox	ZF 5HP502 automatic
Gearbox on request	ZF 12 AS 2330 TO “Eurotronic” (operated in semi-automatic or automatic mode)
Transfer box	IVECO TC 1800
Brakes	ABS / Disc at front & rear
Tyres	14.00R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	3
Misc / Options	Add-on armour kit Central Tyre Inflating System (CTIS) Run flat Tyres Cab for air transport Individual superstructure solutions Winch Many other options are also available

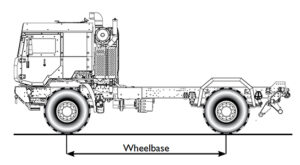

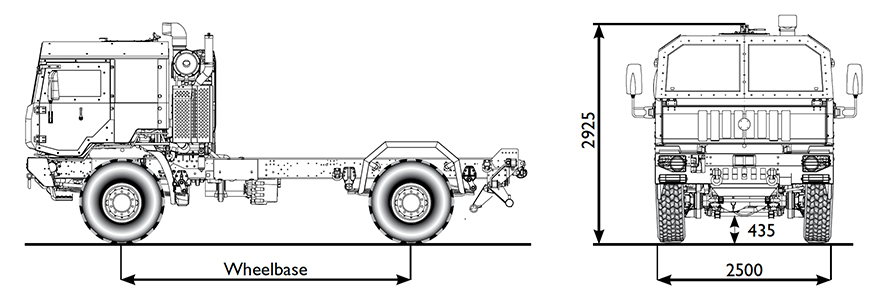

M170.33 WM

HIGH MOBILITY 4x4 WITH ARMOURED CAB

Technical Sheet

Technical Features
Wheelbase	3500 – 4200 – 4800 mm
Kerb weight	ca. 12 tonnes
GVW	17 tonnes
GCW	ca. 37 tonnes
Top speed	> 90 km/h
Engine output (DIN)	242 (330) Euro 5 Compliance kW (HP)
Gearbox	ZF 5HP502 automatic
Transfer box	IVECO TC 1800
Brakes	ABS / Disc at front & rear
Tyres	14.00R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	3
Protection	Ballistic and Mine Protection to Stanag 4569 Integrated IED Protection
Misc / Options	Central Tyre Inflating System (CTIS) Run flat Tyres Individual superstructure solutions Winch Many other options are also available

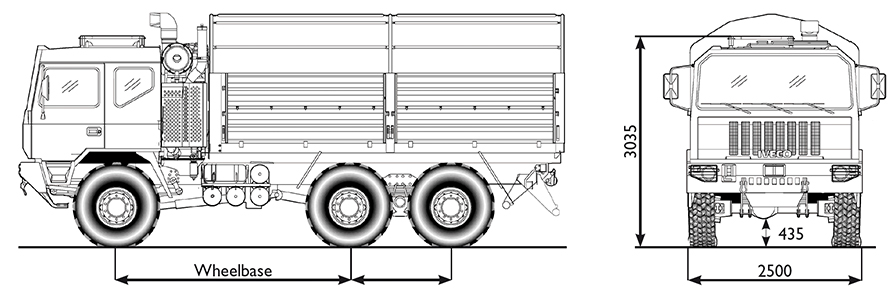

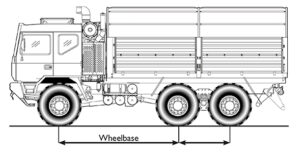

M250.40/41/45 WM

HIGH MOBILITY 6x6 WITH STANDARD CAB

Technical Sheet

Technical Features
Wheelbase	3300 – 3750 – 4200 / 1450 mm
Kerb weight	ca. 13 tonnes
GVW	25 tonnes
GCW	ca. 45 tonnes
Top speed	> 90 km/h
Engine output (DIN)	294 (400) E3 – 300 (410) E5 – 332 (450) E3/E5 kW (HP)
Gearbox	ZF 6HP902 automatic
Gearbox on request	ZF 16 AS 2601 OD “Eurotronic” (operated in semi-automatic or automatic mode)
Transfer box	IVECO TC 2200
Brakes	ABS /Drum at front and rear
Tyres	14.00R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	3
Misc / Options	Add-on armour kit Central Tyre Inflating System (CTIS) Run flat Tyres Cab for air transport Winch Individual superstructure solutions Many other options are also available

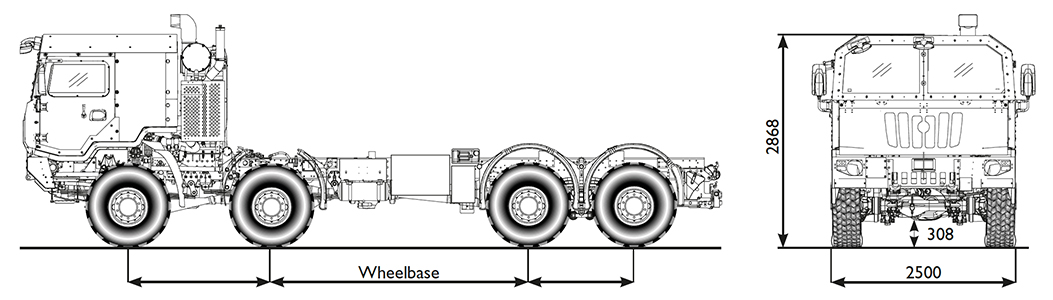

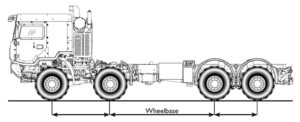

M320.45 WM

HIGH MOBILITY 8x8 WITH ARMOURED CAB

Technical Sheet

Technical Features
Wheelbase	1955 / 3500 / 1450 mm
Kerb weight	ca. 17 tonnes (without superstructure)
GVW	32 tonnes
GCW	56 tonnes
Top speed	> 90 km/h
Engine output (DIN)	330 (442) Euro 5 kW (HP)
Gearbox	ZF16AS2631 automated
Transfer box	IVECO TC 2200
Brakes	ABS / Drum at front and rear
Tyres	365/85R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	3
Protection	Ballistic and Mine Protection (Stanag 4569) Integrated IED Protection
Misc / Options	Add-on armour kit Central Tyre Inflating System (CTIS) Run Flat Tyres Cab for air transport Gunner Turret (protected) ASR Preset for communication system installation Many other options are also available

M320.45 WM

HIGH MOBILITY 8x8 WITH STANDARD CAB

Technical Sheet

Technical Features
Wheelbase	1875 / 3595 / 1450 mm
Kerb weight	ca. 15 tonnes
GVW	32 tonnes
GCW	ca. 52 tonnes
Top speed	> 90 km/h
Engine output (DIN)	332 (450) kW (HP)
Gearbox	ZF 6HP902 automatic
Gearbox on request	ZF 16 AS 2601 OD “Eurotronic” (operated in semi-automatic or automatic mode)
Transfer box	IVECO TC 2200
Brakes	ABS / Disc at front and rear
Tyres	14.00R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	3
Misc / Options	Add-on armour kit Central Tyre Inflating System (CTIS) Run flat Tyres Cab for air transport Winch Individual superstructure solutions Many other options are also available

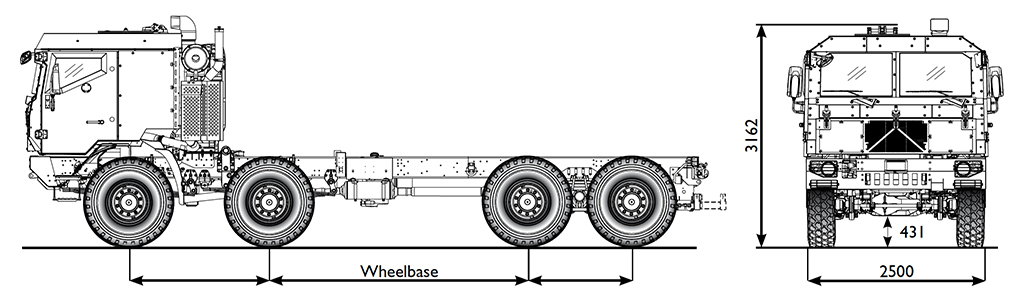

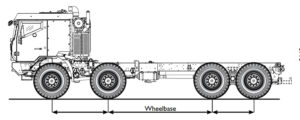

SM88.45 BAD

HIGH MOBILITY 8x8 WITH ARMOURED CAB

Technical Sheet

Technical Features
Wheelbase	1955 / 3595 / 1450 mm
Kerb weight	ca. 16,5 tonnes
GVW	32 tonnes
GCW	44 tonnes
Top speed	> 90 km/h
Engine output (DIN)	330 (442) Euro 5 kW (HP)
Gearbox	ZF 6 HP902 automatic
Transfer box	IVECO TC 1800
Brakes	ABS / Disc at front and rear
Tyres	14R20 (single on rear axle)
Electrical system	Multiplex (CanBus) / EDC / 24 V
Seats	2
Protection	Ballistic and Mine Protection (Stanag 4569) Integrated IED Protection
Misc / Options	Run Flat Tyres Cab for air transport Central Tyre Inflating System (CTIS) Add-on armour kit Preset for communication system installation Many other options are also available

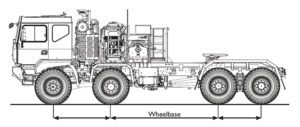

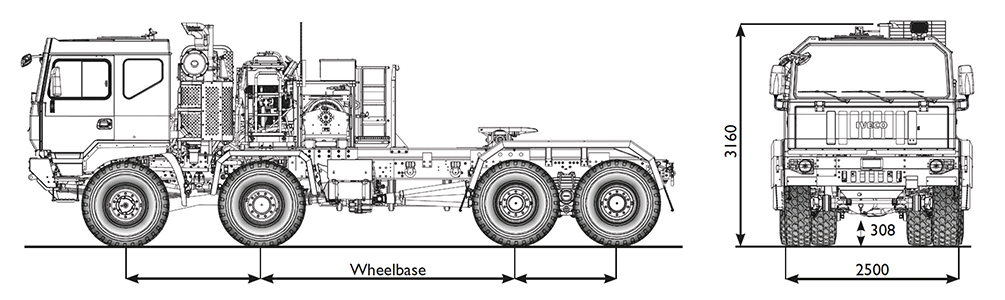

M1250.70T WM

HIGH MOBILITY 8x8 WITH STANDARD CAB

Technical Sheet

Technical Features
Wheelbase	1955/3645/1450 mm
Kerb weight	ca. 19,6 ton (with standard cab) ca. 22,0 ton (with armoured cab)
GVW	50 ton
GCW	125 ton
Top speed	70 km/h
Engine output	500 KW (680 HP) /2990 Nm, Euro3 level
Gearbox	automatized ZF TC-Tronic 12TC3041 WO 12 speed (and 2 rev.) plus Intarder (on request full automatic Allison HD 4700 plus Retarder)
Transfer box	ZF Steyr VG2700 (with neutral position)
Brakes	ABS/Drum brakes on front and rear
Tyres	14.00 R20 (twin on rear axles)
Seats	3 (on request 4)
Fording	1,2 m
Winch	double winches Rotzler HZ200 (pull 250 KN each winch)
Options	Add-on armour kit Semi-automatic Tyre Inflation System (STIS) Run flat tyres kit for air transport EMC (MIL level)
