Versatility is the new force

MUV - Military Utility Vehicles 4x4

The new MUV is the result of the company’s vast experience in the light vehicles sector, highlighted by the extraordinary commercial success of its predecessor, the M40E15-WM, which has sold more than 18,000 units world-wide over the last 30 years.

The MUV is a purpose-built, rugged and highly mobile military vehicle designed to handle a broad and diverse range of mission roles. Extremely agile, it is capable of operating in a wide range of demanding terrains and climates. The use of COTS main assemblies, such as the gearbox, engine and cabin, ensures outstanding performance, reliability and ergonomics while reducing the vehicle’s logistic footprint thanks to the extensive number of components in common across the range, and a logistics chain well tried and trusted by the civilian market.

With three G.V.W. options, up to 7t and six available wheelbases, the MUV is designed to offer a maximum payload of 4t. Van, cab (single and double) and rolling chassis configurations are designed to accommodate every possible requirement, with the capacity to transport and rapidly deploy a maximum of 14+2 personnel with equipment. The MUV’s adaptability is further enhanced by the option for extra armour protection if necessary.

The FPT engines, available in EURO III and EURO VI versions, produce 150hp or 180hp and are specially designed to operate in demanding environments, including extreme temperatures ranging from -32°C to +49°C. They can be coupled with either an FPT six-speed manual gearbox or an eight-speed automatic gearbox with torque converter.

Mobility is enhanced by a permanent 4×4 drive with lockable differentials and a PTO equipped transfer case, as well as an independent front suspension system with torsion bar, to ensure balanced off-road mobility, handling and reliability. ESP and ABS further enhance performance and run flat options are also available.

The electrical system is designed for both civil and military use, with 12V and 24V circuits and NATO-compliant sockets and blackout systems. The MUV is available in both left and right hand drive in five different wheelbase configurations, from 3080mm to 4175mm.

5.5-7.0t G.V.W

107-132kW Power

430NmTorque

MUV 4X4 - READY FOR EVERY SCENARIO

MILITARY FEATURES
▪ 12V main circuit – 24V secondary circuit
by DC/DC converter
▪ 2 x (12V – 110Ah) battery with main switch
▪ 12V and 24V sockets
▪ 24V sleeve start socket
▪ 12-pole socket for rear towing
(as per NATO requirements)
▪ Black-out lighting system
(as per NATO requirements)
▪ Metallic engine bonnet
▪ Front and rear towing eyes
▪ PTO
▪ Run-flat system
▪ Weapon holders
▪ Heavy duty front bumper (bull-bar)
▪ ECTIS (Externally Controlled Tyre Inflation System)
▪ Front winch
▪ Radiator, engine oil sump and transfer
case guard, metallic type



MISSION
Cargo Carrier, Troop Transport
(protected/unprotected). Ambulance,
Pick-up, Civil Protection, Fire-fìghting



CIVIL PROTECTION FEATURES
▪ Metallic engine bonnet
▪ PTO
▪ Heavy duty front bumper (bull-bar)
▪ Radiator, engine oil sump and transfer case guard, metallic type

PERFORMANCE

Purpose-built, high-yield steel frame
Powerful engine with automatic gearbox
Permanent 4×4 drive
Full disk brake system with ABS + ESP

MOBILITY

High off-road mobility for both
tactical and logistic missions

DESIGN

COTS based main components
Solid and military grade design
Worldwide IVECO logistic support
Kerosene and low-quality diesels compatible

EQUIPMENT

24V circuit
Black-out lights
IR lights, NATO towing hook

VERSATILITY

Short cab / Crew cab / Van versions
Full spectrum of missions:
Cargo Carrier, Troop Transport (protected/non), Ambulance,
Pick-up, Special Forces Operation, etc.

MUV

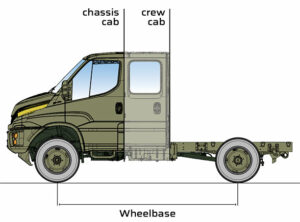

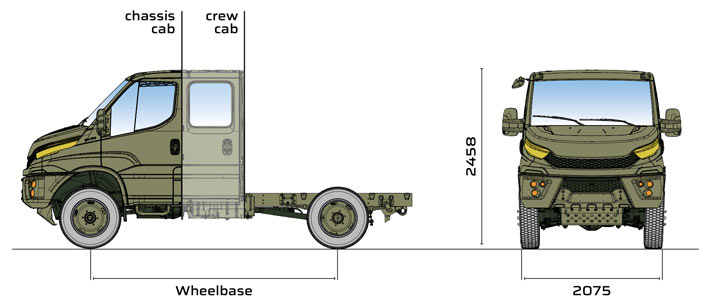

MUV CHASSIS/CREW CAB

Technical Features - WHEELBASE 3080
Drive

LHD and RHD

Wheelbase

3080 mm

Overall length

4971 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

935 mm

Overall height

2458 mm

Ground clearance front/rear

>220/>200 mm

Approach / Departure angle

37°/36°

Payload

up to 4000 kg

Gross Vehicle Weight

3500 – 5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient/side slope (max GVW)

>60% / >30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT / IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk ESP,ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R 16

(Run-Flat and External STIS as option)

Seats

Single Cab: 2 + 1

Crew Cab: 6 + 1

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

Technical Features - Wheelbase 3480
Drive

LHD and RHD

Wheelbase

3480 mm

Overall length

5376 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

940 mm

Overall height

2458 mm

Ground clearance front/rear

>220/>220 mm

Approach / Departure angle

37°/36°

Payload

up to 4000 kg

Gross Vehicle Weight

3500 – 5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient/side slope (max GVW)

>60% / >30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT / IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk ESP,ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R 16

(Run-Flat and External STIS as option)

Seats

Single Cab: 2 + 1 Crew Cab: 6 + 1

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

Technical Features - Wheelbase 3780
Drive

LHD and RHD

Wheelbase

3780 mm

Overall length

5881 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

1145 mm

Overall height

2458 mm

Ground clearance front/rear

>220/>220 mm

Approach / Departure angle

37°/30°

Payload

up to 4000 kg

Gross Vehicle Weight

3500 – 5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient/side slope (max GVW)

>60% / >30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT / IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk ESP,ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R 16

(Run-Flat and External STIS as option)

Seats

Single Cab: 2 + 1 Crew Cab: 6 + 1

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

Technical Features - Wheelbase 4175
Drive

LHD and RHD

Wheelbase

4175 mm

Overall length

6846 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

1715 mm

Overall height

2458 mm

Ground clearance - front/rear

>220/>220 mm

Approach / Departure angle

36°C/18°C

Payload

up to 4000 kg

Gross Vehicle Weight

3500 – 5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient/side slope (max GVW)

>60% / >30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT / IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk ESP,ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R1 6

(Run-Flat and External STIS as option)

Seats

Single Cab: 2 + 1 Crew Cab: 6 + 1

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

MUV

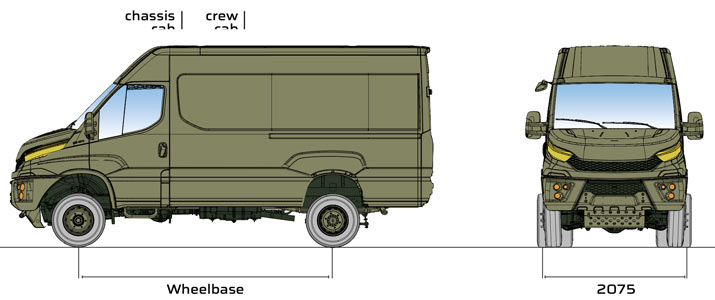

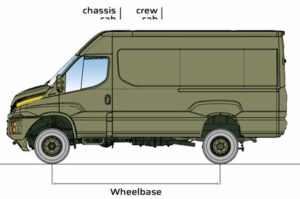

MUV VAN

Technical Features - Wheelbase 3595
Drive

LHD and RHD

Wheelbase

3595 mm

Overall length

5590 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

1067 mm

Overall height

from 2470 to 3130 mm
(depending on roof height)

Ground clearance - front/rear

258/253 mm

Approach / Departure angle

37° / 27°

Payload

up to 3600 kg

Gross Vehicle Weight

5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient / side slope (max GVW)

>60% > 30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT/IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk – ESP, ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R 16

(Run-Flat and External STIS as option)

Seats

up to 14 + 2

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

Technical Features - Wheelbase 3595L
Drive

LHD and RHD

Wheelbase

3595L mm

Overall length

5990 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

1467 mm

Overall height

2795 mm

Ground clearance - front/rear

258 / 253 mm

Approach / Departure angle

37° / 19°

Payload

up to 3600

Gross Vehicle Weight

5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient / side slope (max GVW)

>60% > 30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT/IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk – ESP, ABS & EBD

Tyres

Single Wheel: 255/100 R 16 or 265/70 R 19.5

Twin Wheel: 225/75 R16

(Run-Flat and External STIS as option)

Seats

up to 14 + 2

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

Technical Features - Wheelbase 4175
Drive

LHD and RHD

Wheelbase

4175 mm

Overall length

7155 mm

Overall width

2075 mm

Front overhang

928 mm

Rear overhang

2052 mm

Overall height

2795 mm

Ground clearance - front/rear

258 / 253 mm

Approach / Departure angle

37° / 14°

Payload

up to 3600 kg

Gross Vehicle Weight

5500 – 7000 kg

Fording depth - w/o prep

600 mm

Towing capability

3500 kg

Top speed

110 km/h

Gradient / side slope (max GVW)

>60% > 30%

Operating temperatures

-32°C ÷ +49°C

Engine Euro III

Power: 107-132kW (145-180hp) – Torque: 350 – 430Nm

Engine Euro VI

Power: 132kW (180hp) – Torque: 430Nm

Transmission manual

FPT/IVECO 6-speed

Transmission automatic

8-speed with torque converter

Power Take Off (PTO)

as option

Brakes

2-circuit (service/emergency) – hydraulic type – front and rear disk – ESP, ABS & EBD

Tyres

Single Wheel: 255/ I 00 R 16 or 265/70 R 19 .5
Twin Wheel: 225/75 R 16
(Run-Flat and External STIS as option)

Seats

up to 14 + 2

Military fuel

Compliant with STANAG 4362

Black out lights

as option

NATO interoperability requirement

stanag 2601 (Electric connection) as option

stanag 4101 (Towin attachments) as option

MUV

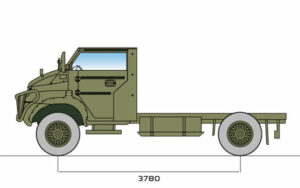

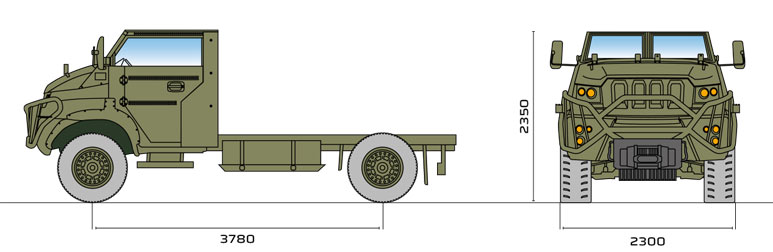

MUV SPECIAL FORCES

Technical Features - Wheelbase 3780
Crew

2+8

Overall length

5770 mm

Width (excl mirrors)

2300 mm

Overall height

2350 mm

Kerb weight

4000 kg

Payload

up to 3700 kg

Gross Vehicle Weight

7000 kg

Max load front axle

2700 kg

Max load rear axle

5000 kg

Towing capability

3500 kg

Engine

IVECO FPT FIC 3.0

Max power

132 kW (180hp)

Max torque

430 Nm

Transmission

Permanent 4×4, 8-speed full automatic
gearbox HI-MATIC,
with 2-speed Transfer Case

Brakes

Disc + ABS, ESP, EBD, ASR, Hill holder
