The new era for land operations

SUPERAV Land - Land Armoured Vehicle 8X8

After the joint success with BAE Systems of the original SUPERAV 8×8 Amphibious Vehicle in the US Marine Corps ACV program, Iveco Defence Vehicles has added a land-oriented version to its portfolio, designed for integration with an unmanned turret and an extensive mission payload. Being so well tried and trusted, Iveco Defence Vehicles decided to exploit the capability of the SUPERAV amphibious 8×8 platform in the brand new SUPERAV Land. The SUPERAV Land has about 85% in common with the amphibious vehicle, with virtually identical engine and drivetrain components, but is slightly smaller (450mm in length and 190mm in height) to improve terrestrial mobility and reduce the vehicle profile, and considering the fact that terrestrial mission squads are usually made up of eight troops. Lowering the internal volume, has saved a considerable amount of weight, equivalent to the average weight of a medium calibre unmanned turret. Naturally, the SUPERAV Land has no amphibious subsystems like propellers, propeller shafts, splashboards and bilge pumps, and with transport capability reduced from 13 to 8 troops, all the saved weight has been invested in additional ballistic protection.

As previously mentioned, the SUPERAV Land has the same engine as the original AV, based on an Iveco Cursor 16 turbocharged intercooler diesel producing 700hp and 3000Nm torque, coupled to an Allison 4800 SP gearbox with seven forward and two reverse gears. The independent hydro-pneumatic McPherson independent suspension ensures maximum off-road mobility, and the vehicle is also fitted with a disengageable transverse differential lock for the front axle. The SUPERAV Land has first and second axle steering as standard, with an optional fourth low speed counter-steering axle to reduce the turning circle even further. The SUPERAV runs on 16.00 R20 tyres with run-flat VFI system and central inflation system to optimise performance on soft ground. The vehicle is equipped with a digital vetronic system providing over 900Ah electrical power, as well as easy third-party subsystem integration, and a built-in diagnostics system for improved maintainability.

31.5t G.V.W

515kWpower

3000Nmtorque

PROTECTION

Multi-level mine protection, protection against
KE-threats with modular add-on ballistic kit,
anti-IED capability, AFSS

PERFORMANCE

Unequalled performance in terms of
speed and acceleration

MOBILITY

Best in class all-terrain mobility

POWER

6-cylinder multifuel engine
with 700hp, 3000Nm torque

SYSTEM INTEGRATION

Accommodate extensive GFE, including radios,
BMS, intercom, ECM and CBRN

CREW AND TROOP

Up to 3 crews, suspended interior
seat structure for 8 troops

ARMAMENT

RWS mounting weapons up to 40mm calibre

SUPERAV LAND

LAND ARMOURED VEHICLE 8×8

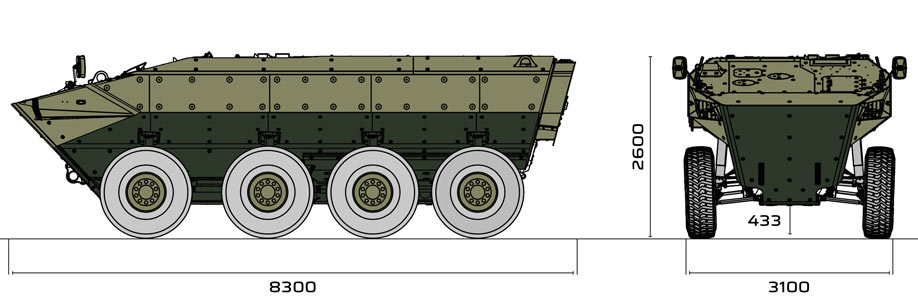

Technical Features

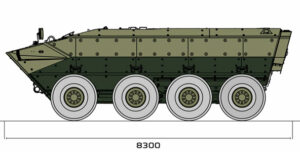

Overall length

8300 mm

Height (hull)

2600 mm

Overall width

3100 mm

Approach angle

49°

Departure angle

43°

Personnel capacity

Up to 3 + 8

Empty weight

26000 kg

Payload

5500 kg

Combat weight

31,500 kg

Max speed

>105 km/h

Gradient

>60%

Side slope

>30%

Range (at 70 km/h)

>700 km

Step

>0,65 m

Trench

>2 m

Fording depth

1,5 m

Turning circle

11 m

Engine

IVECO Cursor 16 Turbocharged Intercooler

Fuel

Multifuel

Max power

515 kW (700 hp)

Max torque

3000 Nm

Gearbox

Allison 4800 SP

Number of gears

7 + 2 R
